Product Standards:
EN 12390-1
4-part with clamp attached base plate.
Available in three sizes.
x
d
e
m
o
c
o
n

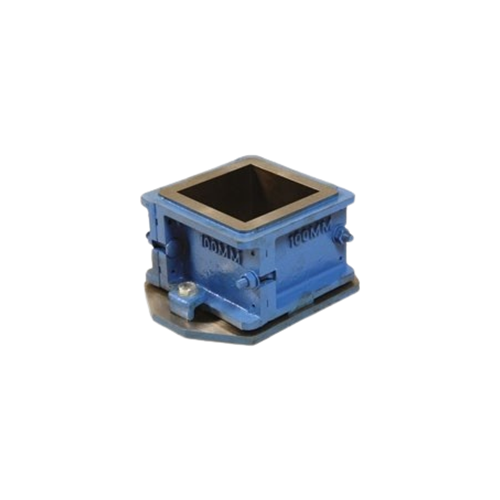

Cube Mould 4-Part Clamp Type Cast Iron Construction
Cube Mould 4-Part
| Specifications | |
| Cube Mould Type | 4-part |
| Finish | Painted |
| Construction | Bolted sides and clamped base plate |
| Cube Mould 100 mm (34-4520) | |
| Internal Dimensions L x W x H (mm) | 100 x 100 x 100 |
| Weight (kg) | 7.7 |
| Cube Mould 150 mm (34-4570) | |
| Internal Dimensions L x W x H (mm) | 150 x 150 x 150 |
| Weight (kg) | 18.1 |
| Cube Mould 200 mm (34-4620) | |
| Internal Dimensions L x W x H (mm) | 200 x 200 x 200 |
| Weight (kg) | 26.2 |
