200 kN Capacity Flexural Testing System
200 kN Capacity Flexural Testing System
Model: 200kNProduct Code: DMC-401047
TS 436EN 1340TS 2824EN 1338TS EN 1339TS EN 12390-5TS 213-1EN 13748-1EN 13748-2TS EN 7500-1
A 200 kN capacity fully automatic flexural testing system for paving stone, kerb, terrazzo tile and concrete beam specimens.
- DMC-401047 product code • 200 kN main capacity • 10 kN second frame load cell
- Class 1 load measurement • 0,1-2 kN/s main test speed • 10-300 N/s second frame
Featured Characteristics
- The 200 kN capacity main frame offers a high-rigidity test area for paving stone, kerb and concrete beam tests.
- The second frame with a 10 kN load cell is configured for precise flexural strength tests on terrazzo tiles.
- Specimen type, test speed and test information can be managed via the digital unit and the computer software.
- Paving, kerb, terrazzo and concrete beam test modes simplify the result calculation and reporting process.
- The pressure safety valve and piston travel limiter support a safe operating structure.

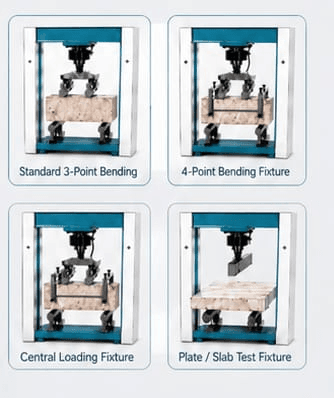

- With the standard apparatus set, concrete kerb flexural, paving stone splitting tensile and terrazzo tile flexural tests can be performed.
Technical Specifications
- Product code
- DMC-401047
- Product type
- 200 kN capacity flexural testing system
- Main capacity
- 200 kN
- Accuracy
- ±1%
- Second frame
- Second frame with 10 kN capacity load cell for terrazzo tile flexural tests
- Standards
- TS 436 EN 1340; TS 2824 EN 1338; TS EN 1339; TS EN 12390-5; TS 213-1 EN 13748-1; TS 213-1 EN 13748-2
- Apparatus
- Concrete kerb flexural apparatus, paving stone splitting tensile apparatus, terrazzo tile flexural apparatus
- Main test speed
- Adjustable in the 0,1 kN/s - 2 kN/s range
- Second frame test speed
- 10 N/s - 300 N/s
- Load measurement
- Load measurement with load cell
- Hydraulic unit
- Fully automatic hydraulic power unit
- Load measurement class
- TS EN 7500-1 Class 1 in the 2 kN - 200 kN range; Class 1 on the 10 kN load cell
- Control
- Fully automatic control from the digital unit and the computer
- Digital unit
- Loading rate and specimen type input; independent operation; metric/SI units
- Software
- Specimen type, size selection and result calculation modes for paving, kerb, terrazzo and concrete beam tests
- Safety
- Pressure safety valve and piston travel limiter
- Data management
- Control via computer, result storage, specimen/test information and test speed input
- Automatic return
- Automatic break at the set speed and return to the starting position
- Paving placement pieces
- 100 placement pieces in the dimensions and properties specified in the standard
Technical Compliance Matrix
| No | Technical requirement | Catalogue compliance | Status |
|---|---|---|---|
| 1 | 200 kN capacity and ±1% accuracy | Catalogue compliance: the DMC-401047 main test frame is 200 kN capacity and its accuracy is ±1%. | ✓ Compliant |
| 2 | Second frame with 10 kN load cell for terrazzo tiles | The second frame connected to the device and digital unit is configured with a 10 kN capacity load cell for terrazzo tile flexural tests. | ✓ Compliant |
| 3 | Test apparatus and content compliant with the relevant standards | Standards: TS 436 EN 1340; TS 2824 EN 1338; TS EN 1339; TS EN 12390-5; TS 213-1 EN 13748-1 and TS 213-1 EN 13748-2. The necessary tools and consumable contents are included in the standard equipment list. | ✓ Compliant |
| 4 | Kerb, paving and terrazzo test apparatus | The concrete kerb flexural apparatus, paving stone splitting tensile apparatus and terrazzo tile flexural apparatus are used with the system. | ✓ Compliant |
| 5 | Main test speed 0,1-2 kN/s; second frame 10-300 N/s | On the main frame the test speed is adjustable in the 0,1 kN/s - 2 kN/s range; on the second frame in the 10 N/s - 300 N/s range. | ✓ Compliant |
| 6 | Fully automatic hydraulic power unit and load cell measurement | The system operates with a fully automatic hydraulic power unit; load measurement is done via a load cell. | ✓ Compliant |
| 7 | TS EN 7500-1 Class 1 load measurement accuracy | TS EN 7500-1 Class 1 is provided in the 2 kN - 200 kN range; Class 1 load measurement class on the 10 kN load cell. | ✓ Compliant |
| 8 | Fully automatic control from the digital unit and the computer | The device can be fully automatically controlled from the digital unit and the computer; test results can be obtained. | ✓ Compliant |
| 9 | Rate/specimen type input on the digital unit and independent operation | The loading rate and specimen type can be entered on the digital unit; the unit operates independently of the computer and supports metric/SI units. | ✓ Compliant |
| 10 | Paving, kerb, terrazzo and concrete beam modes in the software | The software has specimen type, size selection and result calculation modes for paving, kerb, terrazzo and concrete beam tests. | ✓ Compliant |
| 11 | Pressure safety valve and piston travel limiter | The system has a pressure safety valve and a piston travel limiter. | ✓ Compliant |
| 12 | Fully automatic control and result storage from the computer | Fully automatic control can be done via the computer; results can be stored on the computer. | ✓ Compliant |
| 13 | Specimen information, test information and test speed input in the program | Specimen information, test information and test speed can be entered in the computer program. | ✓ Compliant |
| 14 | Automatic break at the set speed and return to start | The device performs an automatic break at the speed set from the digital unit or test program and returns to the starting position. | ✓ Compliant |
| 15 | 100 placement pieces for paving | There are 100 placement pieces in the dimensions and properties specified in the standard for paving specimens. | ✓ Compliant |
