LR200
LR200 Rebar Detector
A handheld scanning device for detecting steel rebar, conductive cable and non-ferrous metal in concrete elements.
Model: LR200Product Code: DMC-400088
Key Technical Highlights
Product code
DMC-400088
Model
LR200
Detection
Rebar, conductive cable and non-ferrous metal
Depth
Approx. 12 cm rebar detection
Display/Power
LCD display, battery operation
Product Overview
The LR200 is a battery-powered, LCD-display handheld scanning device used for rebar and metal detection during field inspection of reinforced concrete elements.
Usage and Detection Summary
Detection of steel rebar in concrete elements.
Detection of conductive cable lines within concrete.
Field preliminary inspection of non-ferrous metal objects.
Practical scanning on vertical and horizontal surfaces with a handheld body.
- Handheld scanning application on concrete surface • LR200 device body with LCD display

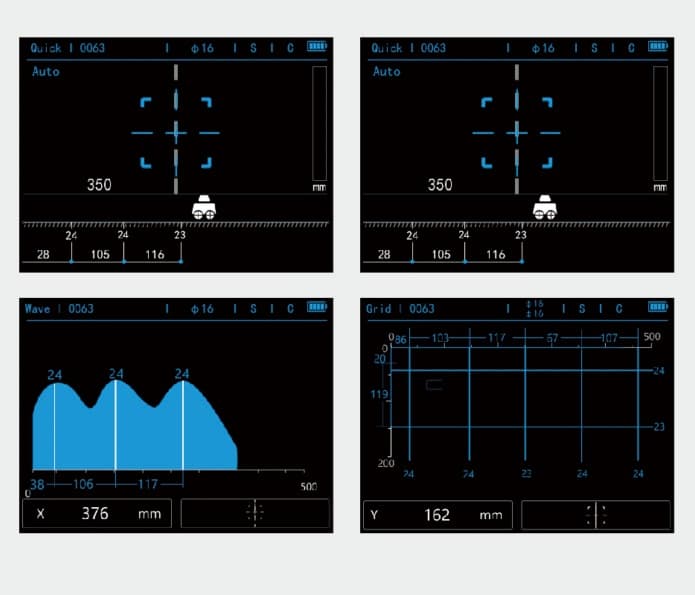

- Scanning screen and measurement views • Screen interface and system features suitable for data transfer
Technical Specifications
- Product code
- DMC-400088
- Model
- LR200
- Device type
- Handheld concrete element scanning and rebar detection device
- Detection scope
- Detection of steel rebar, conductive cable and non-ferrous metal
- Rebar detection depth
- First range 1-105 mm, second range 1-205 mm
- Display
- 2,8 inch colour LCD display and capacitive touch interface
- Power supply
- Battery-powered portable use, up to 24 hours of operation
- Field of use
- Reinforced concrete element inspection, rebar location and field preliminary inspection applications
- Data display
- Monitoring of position and measurement information via the scanning screen
- Portability
- Field use with a handheld compact body
- Additional system features
- On-screen measurement interface, scan page display and a structure suitable for data transfer
Technical Compliance Matrix
| No | Technical requirement | DMC-400088 LR200 compliance | Status |
|---|---|---|---|
| 1 | Rebar detection | Rebar diameter application range: Ø6-Ø50 mm; diameter estimation range: Ø6-Ø50 mm. | ✓ Compliant |
| 2 | Conductive cable detection | Detection scope: conductive cable/line detection; position information monitoring via the LCD scanning screen. | ✓ Compliant |
| 3 | Non-ferrous metal detection | Detection scope: non-ferrous metal detection; handheld metal scanning structure. | ✓ Compliant |
| 4 | Approx. 12 cm rebar detection depth | Maximum range: first range 1-105 mm, second range 1-205 mm. | ✓ Compliant |
| 5 | LCD display | Display: 2,8 inch colour LCD display and capacitive touch interface. | ✓ Compliant |
| 6 | Battery-powered portable use | Operating time: up to 24 hours of battery-powered portable use. | ✓ Compliant |
Key Advantages
- Thanks to the battery-powered structure, it can be used without cable dependency
- Position and measurement information can be tracked on the LCD display during scanning
